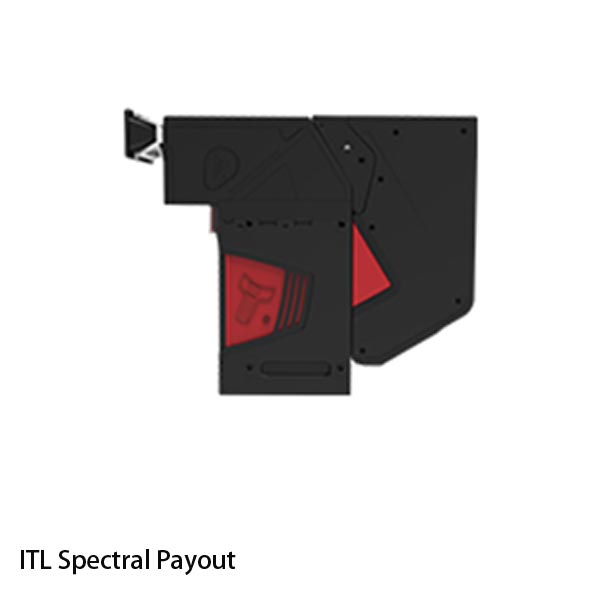

ITL Cash Recycler Spectral Payout
ITL Cash Recycler Spectral Payout
The Spectral Payout boasts superior mixed denomination note recycling and the most technically advanced note validation technology. An 80 note ‘true’ mixed denomination recycler the Spectral Payout can store all denominations from a given currency, eliminating coin starvation & reducing the coin float level required to keep machines operational. State of the art spectral sensors offer complete note image capture (highest spectral coverage) to authenticate the validity of notes and detect stained notes.
Auto-centering technology straightens notes before reading and all notes in the Spectral Payout can be transferred to the cashbox for easy collection.
• Superior mixed denomination banknote recycler
• 100% note image capture – highest spectral coverage
• Eliminates coin starvation
• Stained note detection
• Reduce operational collection costs
Power Requirements: 12 V/ 24 V Standby: 400 mA Running: 3 A Peak: 5.5 A |
Bezel Options 82 / 85 mm width Metal bezel Various illumination options |
Note Dimensions Accepts Width: 60 – 85 mm Length: 115 – 170 mm Recycles Width: 60 – 82 mm |
Recycler Capacity Up to 80 mixed notes |
Protocols SSP ccTalk |
Interfaces USB with IF17 RS232 Open collector |
Cashbox Options 500 notes 1000 notes |
MCBF 100,000 |
Weight 5.5 kg |
